Features
- Compact design
- BLDC motor
- 360°Airflow
- Independent vent control
- Anti-dust filter
- Jog shuttle remote
- 100 %Copper
- R32Eco-friendly refrigerant
- 1+2 yearsInverter compressor warranty
- 1 yearWarranty on components
Technical specifications
Model AMSC48iA
General
- Model Number
- AMSC48iA
- Type of AC
- Inverter
- Power Supply (Ph-V-Hz)
- 230V,1Ph, 50HZ
- Cooling (T1) · Capacity (Ton)
- 4.0T
- Cooling (T1) · Full Load / Half Load Capacity (W)
- 13200 / 6600
- Cooling (T1) · Capacity (Btu/h)
- 45040 / 22520
- Cooling (T1) · Max Cooling Capacity (W)
- 13550
- Cooling (T1) · Input · Full Load / Half Load Power (W)
- 4575 / 1775
- Cooling (T1) · Rated Current · Full Load / Half Load (A)
- 22.0 / 12.0
- Cooling (T1) · ISEER (W/W)
- 3.55
- Cooling (T1) · Annual Power Consumption (Kw/h)
- 2881.30
- Cooling (T1) · Star Rating
- 3
- e.Tube Outside Dia.and Type (mm)
- Φ7, Innergroove Tube
- g.Number of Circuits
- 6-in & 6-out (IDU), 4-in & 1-out (ODU)
- Indoor Air Flow (Hi/Mi/Lo) (m3/h)
- 2180 (Turbo)
- Sound Level (Sound Pressure) (dB(A))
- 52/50/48
- Throttle Type
- Outdooor (Throttle Valve)

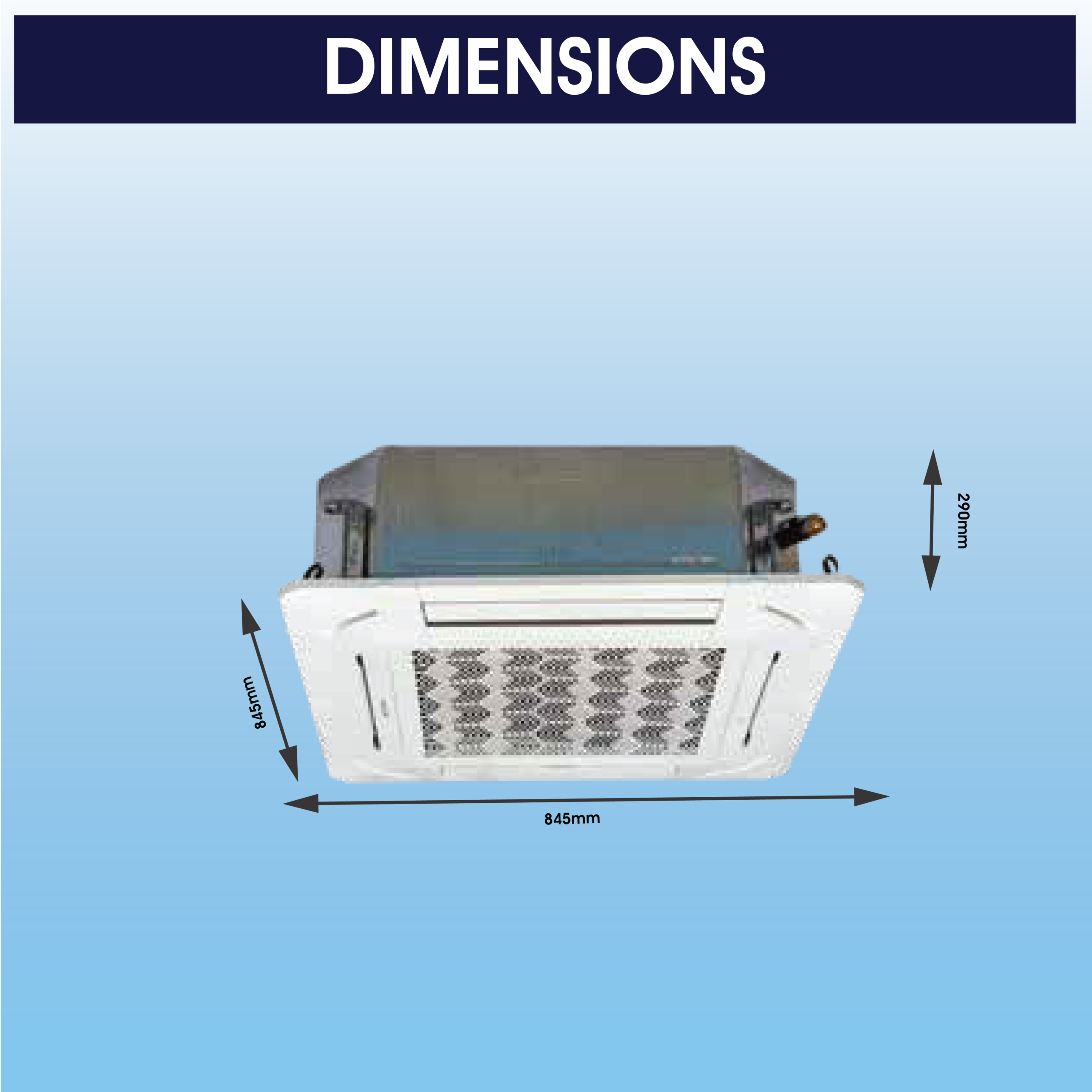

- Indoor Unit · Dimension (W*D*H) (mm)
- 845 x 845 x 290
- Indoor Unit · Packing (W*D*H) (mm)
- 950 x 950 x 373
- Indoor Unit · Dimension (WxDxH) (Panel) (mm)
- 950 x 950 x 52
- Indoor Unit · Packing (WxDxH) (Panel) (mm)
- 1010 x 1034 x 118
- Indoor Unit · Net/Gross Weight (kg)
- 26.0 / 32.0
- Indoor Unit · Net/Gross Weight (Panel) (kg)
- 5.5 / 8.0
- Outdoor Noise Level (dB(A))
- 65
- Throttle Type
- Outdooor (Throttle Valve)
- Outdoor Unit · Dimension (W*D*H) (mm)
- 1032 x 383 x 791
- Outdoor Unit · Packing (W*D*H) (mm)
- 1090 x 470 x 933
- Outdoor Unit · Net/Gross Weight (kg)
- 64.0 / 68.0
- Refrigerant Type · Type (gm)
- R32 / 1720
- Refrigerant Type · Charged Volume (kg)
- 1.72
- Design Pressure (MPa)
- 4.28 / 1.18
- Drainage Water Pipe Diameter (mm)
- ODΦ26mm
- Refrigerant Piping · Liquid Side/ Gas Side (mm(inch))
- 9.52 mm (3/8in) / 15.88mm (5/8in)
- Controller
- Remote Control
- Operation Temperature (℃)
- 48 Max
- Room Temperature · Indoor (Cooling) (℃)
- 16~30
- Room Temperature · Outdoor (Cooling) (℃)
- 21~48
Note: The images shown are for graphical representation only. Amstrad Air Conditioners are designed to work in ambient temperature upto 52 degree centigrade There is a continual improvement process for the better performance, changes in design and specifications can be made without prior notice. Noise level to be experienced from the distance of one meter from air conditioner. All tests are carried at standard conditions.
