| TECHNICAL SPECIFICATIONS OF AMSTRAD ONE-WAY CASSETTE AIR CONDITIONER | |||
| MODEL NUMBER | AMS1WC18iA | ||
| TONNAGE | 1.5T | ||
| TYPE OF AC | Inverter | ||
| POWER SUPPLY | V-Ph-Hz | 230V,1Ph, 50Hz | |
| CAPACITY (RATED) – MAX / FULL / MIN | COOLING | W | 5800 / 5280 / 2640 |
| POWER INPUT (RATED) – FULL / HALF | COOLING | W | 1550 / 570 |
| ANNUAL POWER CONSUMPTION | kWh | 949.89 | |
| ISEER | W | 4.30 | |
| STAR RATING | 3 Star | ||
| MODES | Cool, Dry, Fan, Auto | ||
| CONTROLLER | Remote Control | ||
| INDOOR UNIT | |||
| AIRFLOW RATE (HI/MI/LO) | m³/min | 15.2 / 14.6 / 14.1 | |
| AIRFLOW RATE | f³/min (CFM) | 536 / 515 / 497 | |
| FAN MOTOR | Type | BLDC | |
| SOUND LEVEL | dB(A) | 52 | |
| MACHINE DIMENSIONS | (L*W*H) | 1180 x 450 x 132 | |
| MACHINE PACKING DIMENSIONS | (L*W*H) | 1335 x 440 x 385 | |

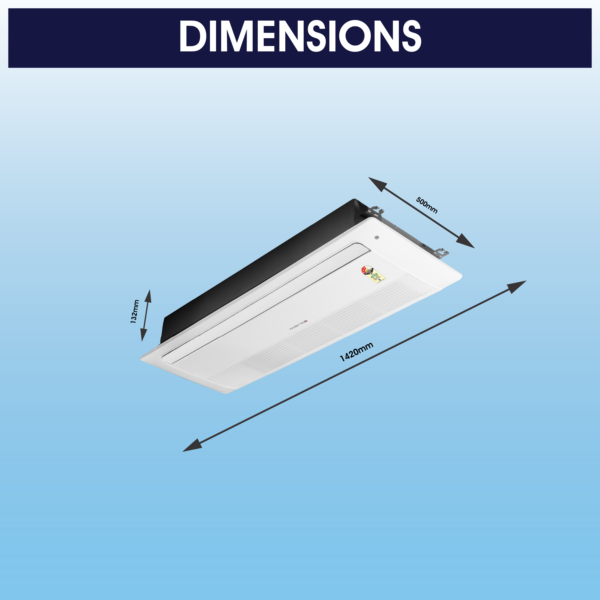

| PANEL DIMENSIONS | (L*W*H) | 1420 x 500 x 34 | |
| PANEL PACKING DIMENSIONS | (L*W*H) | 1440 x 540 x 240 | |
| PIPING CONNECTION (OUTER DIA.) | Liquid | mm (inch) | 6 |
| Gas | mm (inch) | 12 | |
| Drain Pipe | mm | 25 | |
| INDOOR MACHINE WEIGHT (NET/GROSS) | (Kg) | 15.9 / 18.8 | |
| INDOOR PANEL WEIGHT (NET/GROSS) | (Kg) | 3.6 / 6.1 | |
| OUTDOOR UNIT | |||
| SIZE | 20″ WIDE | ||
| COMPRESSOR TYPE | Rotary | ||
| REFRIGERANT | R32 | ||
| REFRIGERANT CHARGE VOLUME | (Kg) | 0.67 | |
| HEAT EXCHANGER | Type (Coating) | Bare | |
| FAN MOTOR | Type | BLDC | |
| SOUND LEVEL | dB(A) | 62 | |
| DIMENSIONS | (L*W*H) | 840 x 355 x 560 | |
| PACKING DIMENSIONS | (L*W*H) | 918 x 405 x 600 | |
| MACHINE WEIGHT (NET/GROSS) | (Kg) | 27.1 / 30.0 | |
| MAX. INTERUNIT PIPING LENGTH | (m) | 10 Meter | |
| MAX. INSTALLATION LEVEL DIFFERENCE | (m) | 5 Meter | |
| PIPING CONNECTION (OUTER DIA.) | Liquid | mm (inch) | 6.35(1/4) |
| Gas | mm (inch) | 12.7(1/2) | |
| PIPING LENGTH | Min / Max | m | 5 meter / 15 meter |
| OPERATING AMBIENT TEMP OUTDOOR COOLING (MIN ~ MAX) | °CDB | 20⁰C ~ 55⁰C | |
NOTE:
- The images shown are for graphical representation only.
- Amstrad Air Conditioners are designed to work in ambient temperature upto 52 degree centigrade
- There is a continual improvement process for the better performance, changes in design and specifications can be made without prior notice.
- Noise level to be experienced from the distance of one meter from air conditioner.
- All tests are carried at standard conditions.
